   ISO 9001:2008 Registered Company
Pharma & Surgical Medical Equipments

• CRC Wad Cap Machine
• Syringe Assembly Machine
• Drip Chamber Assembly
• Scalp Vein Assembly Mc
• IV wing Assembly Mc
• High Speed Tube Cutting Mc
• Tip Forming / Flaring Mc
• Hub Needle Assmb. MC
• Flash Cap Ass. Machine

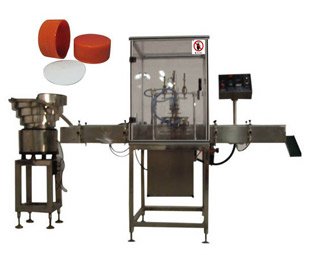

CRC Inner Cap & Wad Cap Insertion Machine - HA Model

HA CRC Inner Cap & Wad Cap Insertion Machine
HA CRC Inner Cap & Wad Cap Insertion Machine
HA CRC Inner Cap & Wad Cap Insertion Machine

Hindustan Automation manufactures and supplies a wide range of wad insertion machine which is extensively used to be fixed under plastic cap of any bottle specially used in cosmetic packaging industry. Some of the models we offer have peripheral equipment (HA Hopper, HC Elevator & HA Bowl Feeder) integrated to the main lining system offering you a fully compact machine built onto a mobile platform. These are well suited to insert the wads into plastic caps that saves manpower and precious time of our esteemed customers. These are rigorously examined by our in-house experts to ensure its flawless functioning.
As a leading wad insertion machine manufacturer, we are offering an extensive range of products at affordable prices. The machine is capable of inserting liners or wads into metal and plastic closure.
- pre cut liners ;
- punching from reel fed tape
- universal tooling for both of the above
Speed : 60-200caps / min

• RC – Inner /Outer Cap Assembly M/c
• Wad Cap Insertion Machine
• Wad Cutting Machine
• Rivet Assembly Machine
• Screw Assembly M/c
• Inline Dripper Machine
• Magnetic Separator


Disposable Syringe Assembly Automation - HA Model

H-SPM Disposable Syringe Assembly Automation
H-SPM Disposable Syringe Assembly Automation

(MULTI-USE) H-SPM provides noiseless part feeder & Auto assembly of Disposable Syringe. Syringe Assembly Unit with Electronic Control Circuit
HA Parts Feeder for Barrels , HA Parts Feeder for Cap With Needle
HA Parts Feeder for Gaskets , HA Parts Feeder for Plunger
Production Capacity :
7,000 pcs ~ 8,500 pcs(multi-use) , ..13,000 pcs ~ 18,000 pcs (mono-use) , Air Consumption : 7 kg/?, 600 L/MIN, Electric Power : AC220V Electric Power Consumption : 1 kw , Machine Dimension : 800(W)x1300(D)x1200(H) mmx1500 kg, System


Automatic Needle Assembly Machine - HA Model

H-SPM Automatic Needle Assembly Machine
H-SPM Automatic Needle Assembly Machine
Our organization is counted among the most distinguished manufacturers and suppliers of Automatic Needle Assembly Machine
• Pick & Place Equipment
• Assembly Line Automation
• Robotic Based Applications
• Ultra Sonic Cleaning Machine
• Vision Camera inspection Machine
• Fixtures, Dies
Other information
Production Capacity: 1320 - 1500 pcs per hour
Delivery Time: 15 -16 weeks
The machines offered by us are designed and fabricated under the supervision of professionals. Assembled needles are unloaded automatically on the stands and the output of machine is approx 1400 pcs per hour with approx 99% needle orientation along with plus/minus 0. 1 mm length variation (which is very precise needle length)
Technical specifications:
PLC & sensors Mitsubishi, omron and hmi pro face/delta.
Out put of the machine is between 22~25 pcs. Per minute or 1320 ~1500 pcs per hour
Pneumatics used in this machine are festo/smc
Needle orientation approx 99%
For long life of grippers, we are using indian/custom make
Length variation plus/minus approx 0.1 mm


Luer Lock & Flash Back Chamber Machine- HA Model

H-SPM Luer Lock & Flash Back Chamber Machine
Owing to the sophisticated manufacturing facility, we have been able to offer Automatic Luer Lock and Flash Back Chamber Assembly Machine. The offered machines are fabricated under the strict surveillance of our professionals in accordance with the international standards. These machines are widely used to assemble two parts (luer lock & flash back chamber). Moreover, our offered machines have two tracks as well as four tracks in order to meet the requirements of customers. Both parts are assembled with help of pick & place unit and discharged through chute. Further, our machines have the capability of gives output from 4,500 pcs. to 9,000 pcs. per hour depending upon the nos. of tracks.
• Weather Shed Assmb. Machine
• Glass Coating Machine
• Capacitor Cold Pressing Machine
• Bi-Metal Tapping Machine
• U-Clamp Machine
• Riveting Machine
Required man power: 1 Person
Production Capacity: The Output of the 2 Tracks Machine is 4500 Pieces Per Hour and the Output of the 4 Tracks Machine.
Technical specifications:
Machine frame size 850* 1250 * 800 mm
PLC Mitsubishi/OMRON make & sensors imported from Japan or German, For 2 tracks 2 nos and for 4 tracks 4 nos of separate motors are used to feed the FBC in Pin feeders, For pin feeders 25 watt ORIENTAL geared motors with AC drives are used Pneumatics of FESTO/SMC make are used Output of the machine is between 4,500 ~ 9,000 pcs per hour depending upon the tracks selected


Body Assembly Machine - HA Model

H-SPM Body Assembly Machine
Innovation is our forte and we strive to design and develop Body Assembly Machine. These are designed on two tracks and double station and two stations are fixed on one table. Further. three components are assembled at our machines such as slip ring, cup formed teflon & wing housing/body. Cutting at wing assembly is clear and straight in length then the customers get very good tipping quality subject to the die quality.
Technical specification:-
PLC Of Mitsubishi, Keyence, Omron, Delta make
Output of single station is between 600~650 pieces per hour/station. It means 1200~1300 pcs per hour
MS Plate with Electro Less Plating (Very Long Life) machine table size 700* 650 * 800 mm
Maximum length variation plus/minus 0.3mm
Power consumption 0.25 Kw
Pneumatics used FESTO/SMC/CKD Make
Air consumption 3.0 cfm at 6.0 bars
Required manpower is 02
Output: Approx 600~650 pieces per hour/station that means 1200~1300 pieces per hour


Tip Forming Machine - HA Model

H-SPM Tip Forming Machine
We are engaged in manufacturing wide range of Tip Forming Machine. These are developed using high grade machines and equipment following the set industry standards and quality norms. These are widely acclaimed in the market for their low maintenance, easy installation, high performance and durability.
• Syringe Assembly Machine
• Drip Chamber Assembly
• Scalp Vein Assembly Mc
• IV wing Assembly Mc
• High Speed Tube Cutting Mc
• Tip Forming / Flaring Mc
• Hub Needle Assmb. MC
• Flash Cap Ass. Machine
Technical Specifications of the products are:
PLC of Delta, Omron or Mitsubishi make.
Touch screen monochrome Delta or Proface.
Air consumption 3.0 cfm per minute.
Chilled water consumption 3.0 liters per minute.
Manpower Requirement=01, Power consumption 2 KW, Output approx 750 pieces per hour.
Table Top Plate, MS Plate with Electro Less Plating (Very Long Life) (750 * 700 * 12 mm).
Machine Frame manufactured from Imported Aluminum Extruded Profiles, Induction Heating Generator Indian or Taiwan make Pneumatics used FESTO/ SMC/ CKD make, Machine Table size 750* 700*700 mm, Exair cold air gun for proper die cooling.


Automatic SiliconTube Cutting Machine - HA Model

H-SPM Automatic SiliconTube Cutting Machine
Owing to the hard work of our professionals, we are capable of offering Automatic Silicon Tube Cutting Machine. These are designed with utmost perfection by our engineers using advanced machines and equipment. Our raw material for the product are sourced from some of the most reliable vendors in the industry. The machine is very compact with a table top design and comprises a output capacity of 4000 to 4200 pieces per hour.
Technical Specification:
Fully Automatic
25 watt variable speed geared motor
Cutting Length as per Clients requirements, otherwise 9 mm ± 0.2mm
Other Information:
Production Capacity: 4000 -4200 pcs per hour


Cup Forming Machine - HA Model

H-SPM Cup Forming Machine

With thorough knowledge of the industry, we are engaged in manufacturing and supplying Cup Forming Machine. Cup is formed at one end of teflon tube to fix slip ring. These machines have double stations and each station having six tracks.
Technical specifications:
Machine table size 1000 * 850 * 800 mm
Table top plate, ms plate with electro less plating (very long life) (1000 * 850 * 12 mm)
Pneumatics used of Festo/ SMC/ CKD make
Reed switches of FESTO/SMC/CKD and sensors of sick optics/Omron
Machine frame manufactured from imported aluminum extruded profiles
6 Tracks & souble station
PLC Mitsubishi/Omron/Delta 24VDC & HMI Pro face/delta
Output: Approx 2250~2500 pieces per hour per station, hence capacity is 4500~5000 pieces per hour
Air Consumption 3.5 cfm per minute at 5.0 bars
Chilled water consumption 3 liters per minute
Cup forming pins are used highly polished & hard chrome plated
Power consumption 2.5 Kw
Manpower requirement is 01



Automotive Spécial Purpose Machines

Automotive Special Purpose Machines
• Pointer Bobbin Assembly Machine
• Valve Piston Assembly Machine
• Leak Testing Machine
• Flow Rate Test Machine
• Speedo Meter Pointer Assembly Machine
• Performance Checking Machine
